Explore top oscilloscopes for precise signal measurement
Oscilloscopes are essential tools for anyone involved in electronics, from hobbyists to professionals. They allow users to visualise electronic signals, helping to diagnose issues in circuits or analyse performance data. With technology advancing rapidly, today's oscilloscopes offer enhanced features such as higher bandwidth, improved resolution, and intuitive interfaces, making them more accessible and effective than ever. Understanding what makes a great oscilloscope is crucial for achieving accurate measurements in various testing applications, whether you're designing a new circuit, troubleshooting a device, or performing research. This comparison covers the latest models, analysing their specifications, price ranges, and unique features to help you make an informed choice. With eight products on display, you'll find options that balance quality and value, ensuring you have the right tool for your needs.
I've examined countless options on Amazon to bring you this carefully selected lineup of exceptional products.

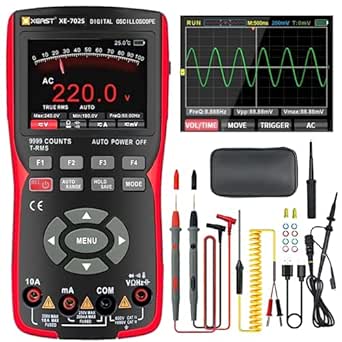

The XEAST Handheld Oscilloscope Multimeter features a robust 10MHz bandwidth and a high sampling rate of 48MSa/s, providing clear, precise waveform measurements. It allows users to switch seamlessly between oscilloscope and multimeter modes with a single button. This unit is equipped with a 2.8 inch IPS display, ensuring visibility even in challenging lighting conditions. The device supports AC/DC voltage/current measurements, resistance, diode checks, and more, making it a versatile tool for various applications. Its data storage capability permits users to save and export waveforms as images, enhancing data analysis and reporting. Additionally, the adjustable backlight and customisable shutdown settings cater to user convenience, prolonging battery life during use.
With a rating of 4.5/5 from 180 reviews, the XEAST oscilloscope is highly regarded for its user-friendly interface and reliable performance. The 3000mAh rechargeable battery offers extended use, ideal for fieldwork, while the durable ABS and silicone construction provides protection against drops and impacts. Users find the automatic calibration function useful for maintaining accuracy over time. However, some may find the compact size limiting for extensive measurements, and the single channel could be a drawback for those needing multi-channel functionality.

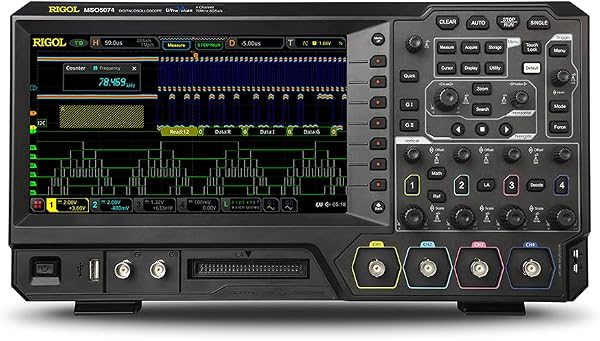

The Rigol MSO5074 stands out with its four-channel capability and impressive 70MHz bandwidth, making it ideal for more complex signal analysis. Its real-time sample rate can reach up to 8 GSa/s, allowing for detailed waveform capture. The device boasts a memory depth of 100 Mpts, expandable up to 200 Mpts, which is particularly beneficial for long-duration signals. It also includes 16 digital channels, adding further versatility for mixed signal testing. The intuitive 9 inch capacitive multi-touch screen enhances user interaction, providing a clear and detailed view of waveforms. The high waveform capture rate of over 500,000 wfm/s ensures even the fastest transients are captured without loss of detail.
With a rating of 4.9/5 from 23 reviews, the Rigol MSO5074 is well-regarded in the market for its performance and reliability. It integrates multiple functionalities - oscilloscope, logic analyser, and spectrum analyser - into one device, making it a valuable tool for engineers across various fields. Users appreciate its upgradeability and the comprehensive software features that support data analysis. However, its premium pricing may deter users with budget constraints, and some might find the advanced features overwhelming at first.
This handheld oscilloscope multimeter offers a single-channel configuration with a 10MHz bandwidth and a fast 48MSa/s sampling rate, ideal for automotive and electronic applications. The device features a 2.8 inch IPS display for clear readings and allows users to measure AC/DC voltage, current, resistance, and more. The additional functionality of waveform storage and USB connectivity for data transfer makes it convenient for users needing to analyse results on a computer.
Rated 4.6/5 from 40 reviews, the 702S is noted for its durable construction, with double injection moulded ABS and TPE for impact resistance. Users find the large font design and adjustable brightness beneficial for readability in various conditions. However, some users have reported that the recording depth of 64Kb may not be sufficient for long waveform monitoring, and the single-channel design might limit its application in more complex scenarios.
The Hantek DSO2C15 boasts a 100MHz bandwidth and a 1GSa/s sample rate, making it suitable for observing fast signals. Its dual-channel capability allows users to compare and analyse two signals simultaneously, enhancing testing efficiency. The device features 32 automatic measurements and statistical analysis functions, simplifying complex tasks for users. Additionally, it offers a memory depth of 8M, allowing for detailed waveform capturing and storage.
With a rating of 4.6/5 from 38 reviews, the Hantek DSO2C15 is recognised for its affordability and reliability. Users value its ease of use, particularly for educational and hobbyist purposes. The inclusion of a built-in waveform generator adds to its functionality, making it a practical choice for those needing multiple tools in one. However, some users may find the lack of advanced triggering options limiting for more complex applications.
This oscilloscope features a bandwidth of 100MHz and a sampling rate of 1GSa/s, making it suitable for a variety of applications. It supports dual-channel operation, allowing for simultaneous capture of two signals. The built-in waveform generator adds practical value, enabling users to generate test signals. Its 8M memory depth allows for extensive waveform storage, while the high-resolution 7-inch TFT LCD screen ensures clarity in waveform display.
With a 4.6/5 rating from 12 reviews, the Hantek DSO2D10 is well-received for its user-friendliness and functionality. It is particularly popular among students and educators due to its affordability and performance. However, users have noted that the absence of advanced trigger modes may limit its effectiveness for professional applications.
The Hantek DSO2D15 features a bandwidth of 150MHz and a sampling rate of 1GSa/s, making it capable of handling fast signals effectively. With dual-channel functionality, users can compare two waveforms simultaneously. The built-in 25MHz waveform generator enhances its versatility, allowing users to create custom test signals. The unit's 8M memory depth supports extensive data capture, while the 7-inch TFT LCD presents information clearly.
Holding a rating of 4.6/5 from 12 reviews, the Hantek DSO2D15 is appreciated for its value and feature set. Users highlight its suitability for educational purposes as well as professional applications. However, some have mentioned that while it performs well for general use, it may not cover specific advanced testing needs.
This oscilloscope offers dual-channel functionality with a bandwidth of 50MHz and a sampling rate of 250MSa/s, making it suitable for basic electronic testing. The device is equipped with a 3.98 inch TFT touch screen that enhances user interaction and visibility. Its rechargeable 3000mAh battery ensures portability and longevity during field use. The included silicone case adds protection against impacts, making it ideal for various environments.
With a perfect rating of 5.0/5 from 2 reviews, the BSIDE Handheld Oscilloscope is well-regarded for its functionality and ease of use. Users find it particularly useful for automotive diagnostics and educational purposes, though it may lack some advanced features required for professional use. Overall, it presents a solid entry-level option for those new to oscilloscopes.
This handheld oscilloscope features a modest 10MHz bandwidth and a sampling rate of 48MSa/s, catering to entry-level users. The 3.2 inch TFT display allows for decent visibility, though it may not perform as well in bright environments. The rechargeable battery ensures that users can take it on the go, while the included carrying case enhances portability.
With a rating of 3.8/5 from 4 reviews, the BSIDE Handheld Digital Oscilloscope is recognised for its affordability and basic functionality. While it is suitable for hobbyist applications, users have noted that it lacks some features found in higher-end models, making it less suitable for professional use.
Selecting the right oscilloscope is vital for achieving accurate results in your projects. As you consider your options, remember to prioritise bandwidth, sample rate, and user interface to ensure the tool meets your specific needs. It's also worth keeping an eye on market trends, as innovations continue to emerge in this field. With careful consideration, you can find an oscilloscope that not only fits your budget but also enhances your testing capabilities. Ready to dive into oscilloscopes? Explore the models listed above and choose the one that best suits your needs!
Start your oscilloscope journey today!
